Potting Machine for Epoxy Resin Casting ab mixing machine

Place of Origin : China

Supply Ability : 50 Piece/Pieces per Month

Price : $ 8500/pieces >=1 pieces

MOQ : 1

Delivery Time : 5-8 days

Payment Terms : T/T 、Western Union、Money Gram

Condition : New

Weight (KG) : 260

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Pump

Warranty : 1 Year

Applicable Industries : electronic parts, honeycomb panel, led lights, PCB

Showroom Location : Italy, Viet Nam, Thailand

Voltage : 220V

Product name : Glue potting machine

Type : standalone

Keyword : ab glue potting machine

After-sales Service Provided : yes

Contact Now

2 part epoxy resin casting machine ab potting machine silicone dispensing machine

Potting is a method for processing resins based on silicone, polyurethane or epoxy in liquid form to cover electrical components such as PCBs or for filling out cavities.

The precise operation of metering and mixing systems is particularly important for resin casting in the electrical and electronic industries. After the curing process, the resins protect the components against moisture, dust or damage and provide a long life-time. Our system achieve all requirements for a precise mixing, metering and application of resins, always aligned to the individual requirements of customers.

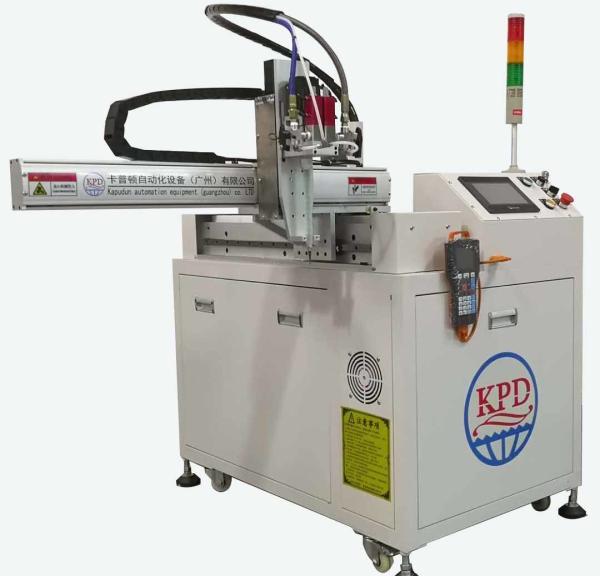

Machine picture

Potting Machine for Epoxy Resin Casting ab mixing machine

Machine description and working principle
Compound materials A & B are kept in two tanks separately. There are two sets of metering pumps inside the machine for metering A and B resin by setting ratio, draining out material individually from tank A & B. Liquid A & B mix with each other in the mixer pipe and dispensed out according to the programmable data.

Potting Machine for Epoxy Resin Casting ab mixing machine

Machine Breif introduction
1. The whole bucket of glue only be placed on the tank side of the machine, and the equipment can be automatically extracted without manual pouring into the storage bucket.
2. The storage tank can be customized according to the potting of AB glue in each hour.
3. The storage tank has automatic defoaming function and material location level detection function.
4. The tank can be customized according to your glue need, such as: automatic stirring, automatic constant temperature, air drying, etc. ..
5. High-precision screw pump (gear pump / plunger pump) pushes glue through the cavity, with high pressure and fast glue output.
6. The servo motor drives the screw pump , the speed of each pump can be set separately, to keep the flow speed of each pump, To achieve the required mixing ratio (1: 1--1: 10 adjustable).
7. Equipped with dynamic mixing device to make the mixing of glue more uniform.
8. Equipped with automatic cleaning function, no need to manually cleaning the machine, avoid manual cleaning trouble.
9. Equipped with 500 * 500mm mechanical arm, which can edit the running path, To actual perfect potting ab glue at correct location on product
1.Dispensing with Dozing nozzle or Static mixer/dynamic mixer
2.Constant or Variable resin:hardener mixing-ratio
3.Single or Multi Dispenser Potting
4.Fixed or Moveable dosing nozzle (Dispensing)
(X-Y-Z axis movement or interpolation)
5.Automatic Loading & Unloading of Trays
6.Ability to dosing different quantities of raw materials to different locations in one program
7.Automation: pre-heating and curing oven with conveyor
8.Extra degassing tanks for uninterrupted production
Dosing Pumps
1. Very precise even at very low volumes
2.Constant mixing ratio ensures faultless dosing
3. Metering pumps ensures minimal amounts of reactive mix
4.Temperature controlled design
5. Resistant to abrasion even when filled with high abrasive casting resins and does not require maintenance
Machine Vacuum Tank Agitator
1. Full homojenization
2.No sedimentation
3. Perfect degassing
Static Mixer /dynamic mixinng
1.Perfect homogenization without dead space
2. Abrasion resistant & low maintanence
3.Temperature controlled design
4. Ensures optimal viscosity of reactive compounds at constant temperature
5.Provides very long service life with a closed cleaning system

Technical Specifications
1.Vacuum PumpUp to 1mbar

2.Nozzle Movement Motor: AC servomotor Linear X,Y,Z axis
3.Nozzle Movement DistancesX:500mm, Y:500mm, Z:100mm
4. Control SystemPLC
5. Power SupplyTriple Phase 220V +/-10%, 50 / 60Hz
6. Air Pressure6 Bar
7. Touch Screen7 inch
8. Barrel size: 10L,30L,40L for optional
Machine Prameter
KPD-500 Automatic Multifunctional Glue Potting Machine
Suitable process:
It can be used as a stand-alone machine or with the customer’s original assembly line to achieve on-line gluing.
Proportion of glue:
10:1 – 1:1
hybrid approach:
Dynamic stirring mixing/static
Machine Stroke:
X,Y axle 400mm/s
Programme stock:
Teach-In Programming
High precision metering pumps
control method:
input method:
Touch screen + buttons + IO
Appearance Material:
Industrial square tube welding + 6061 alloy + cold rolled plate
Drum size:
A barrel 30L, B barrel 10L (can be customised)
External Dimensions:
1100×1350 X1600mm
Gum flow rate:
1–80g/5sec (customised large glue volume available)
Punching points, walking straight lines, curves, drawing circles, arcs, squares, and other irregular shapes.
Supply Voltage:
Potting&isolation &Casting: electronics componnets , PCB board, Capacitor, power supply, transformer, ignition coil, reverse sensor, circuit board, filter products ,underwater parts, electronic ballast ,aviation parts, aerospace parts....
Dispensing&Dosing : LED strip , led lamp , led bulb , aluminum,led screen , display module ,medical parts,medical liquid filling ....
Bonding&doming : LCD screen ,LOCA bonding,ABS plastic,different types of stickers , badge , keychains , souvenirs ,arts , photo frame , and other arts graphics....

Transformer , capacitance , power module , regulating plate ,protection module , generator , pressure package , soli relay ,fault indicator , Sensors , junction box , clutch , wave filter , water meter , boattery cover , rectifier and so on ...

Potting Machine for Epoxy Resin Casting ab mixing machine
Suitable Material
1K and 2-component polyurethanes, epoxies, acrylics, silicones, temperature, humidity and UV curing materials.

Two component potting materials , 2-part compound materials, AB part compound materials , 2K silicones ,2K epoxies resin, Bi-component PU, Ployerster, Polyurethane, UV materials and so on .
Potting Machine for Epoxy Resin Casting ab mixing machine
